    • HMA-40 Omni Wheel
    • Product Description
    • HMA series omni wheel can supply 1300KG payload maximum. while maintaining a high accuracy .This wheel adopts driven wheels as the supporting structure.The hub use integrated molding process, maximizing the intensity, stiffness and precision. HMA series omni wheel with rolling bearings and polyurethane roller materials can adapt to various indoor and outdoor occasions .
    • Feature
    • integrated molding process hub , high intensity ,high stiffnessRolling Bearingload capacity between 0-1300KGindustrial-grade quality

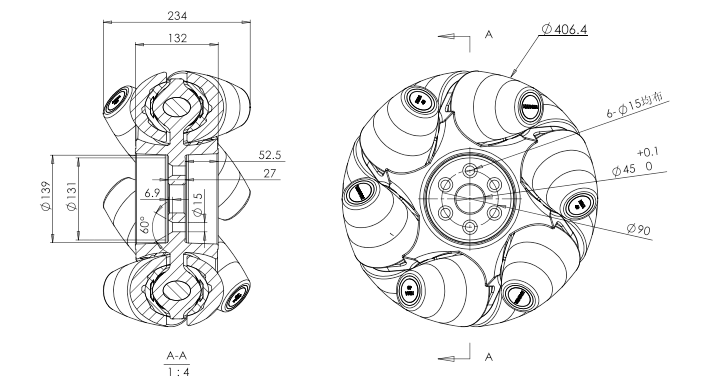

    • Dimension

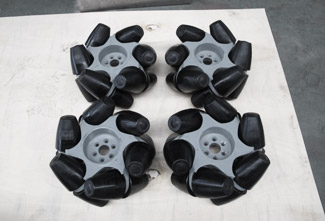

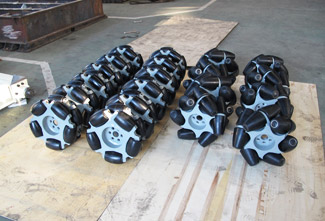

    • Detailed Images
    • Diameter: 406.4（16"）mm Wide: 234mm
      Wheels: 6×2 Bearing Type: heavy duty Rolling Bearing
      Wheel Material: Polyurethane Hub Material: steel
      Hub Surface Treatment: High-Temperature Painting Mount: Flange
      Flange Plate Thinckness: 27mm Flange Plate Diameter: 131mm
      Flange Cavity Inner diameter: 139mm Typical Middle Hole Size: 45mm
      Weight: 45Kg Load: 1300Kg
    • Display
      • omniwheel轴测图
        Realistic picture
        omniwheel侧视图
        Realistic picture
    • Document download
    • HMA-40CN.pdf
