    • QMA-20 Omni Wheel
    • Product Description
    • QMA series omni wheel is 45-degree light payload omni wheel. 2 ball bearings embedded in every driven wheel, Using high precision manufacturing process , it is aimed to supply the products with high accuracy and high quality to satisfy the customers’ various applications. QMA series omni wheel has achieved small clearance in axial direction of driven wheel with steady improvement, they can be especially used on different small robots.
    • Feature
    • produced by high precious technologysmall clearance in axial direction of driven wheelMulti-subdivision design2 bearings embedded in every driven wheelhigh quality rubbernickel-plated on the hub surfaceContinuous improving QMA series omni wheel

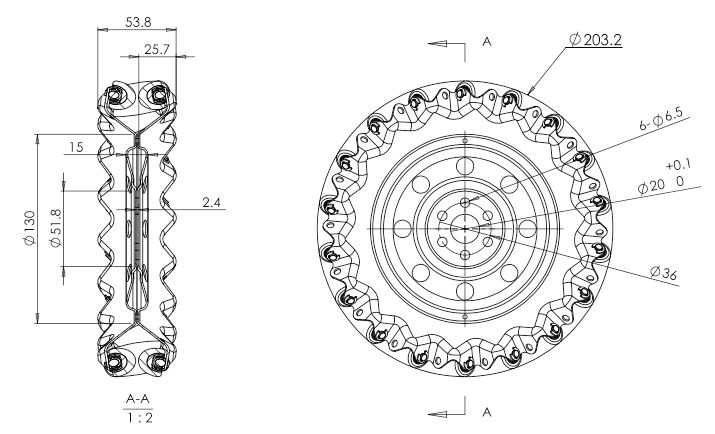

    • Dimension
    • Detailed Images
    • Diameter: 203.2（8"）mm Wide: 53.8mm
      Wheels: 18 Bearing: 36
      Bearing Type: Rolling Bearing Wheel Material: Rubber
      Hub Material: Carbon Steel Hub Surface Treatment: Electronickelling
      Mount: Flange Typical Middle Hole Size: 20mm
      Weight: 1200g Load: 40Kg
    • Display

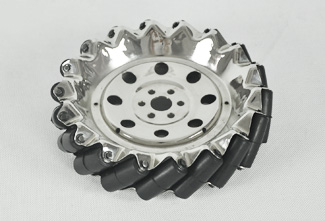

      • omniwheel轴测图
        Realistic picture

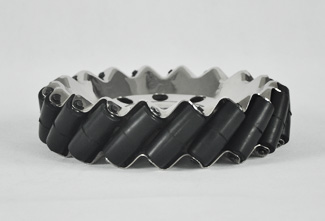

        omniwheel侧视图
        Realistic picture

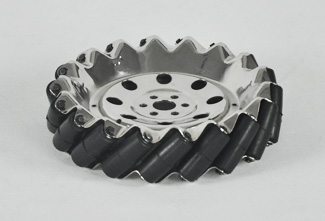

        omniwheel正面斜俯视图
        Realistic picture
        omniwheel背面斜俯视图

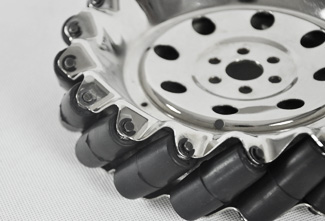

        Detailed picture
    • Document download
    • QMA-20CN.pdf
