    • QL-13 Omni Wheel
    • Product Description
    • QL series omni wheel is 90-degree precise light load omni wheel . there are 2 ball bearings in every driven wheel . it is aimed to supply products with high precise and high quality to satisfy customers’ various applications . QL series omni wheel has achieved zero clearance in axial direction of driven wheel with steady improvement, particularly suitable for different small robots.
    • Feature
    • zero clearance in axial direction of driven wheelDouble Multi-subdivision design2 bearings embedded in every driven wheelhigh quality rubberhigh-temperature painting technologysteadly improving Ql series omni wheel
    • Dimension
    • Detailed Images
    • Diameter: 127（5"）mm Wide: 39mm
      Wheels: 22 Bearing: 44
      Bearing Type: Rolling Bearing Wheel Material: Rubber
      Hub Material: Aluminum Hub Surface Treatment: High-Temperature Painting
      Mount: Flat key/Set Screws Typical Middle Hole Size: 5/6/8/10/12/15/16mm
      Weight: 445g Load: 30Kg
    • Display
      • omniwheel轴测图
        Realistic picture
        omniwheel侧视图
        Realistic picture
        omniwheel正面斜俯视图
        Realistic picture

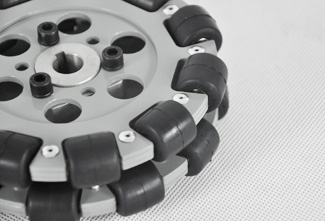

        omniwheel正面斜俯视图
        Detailed picture
    • Document download
    • QL-13CN.pdf
