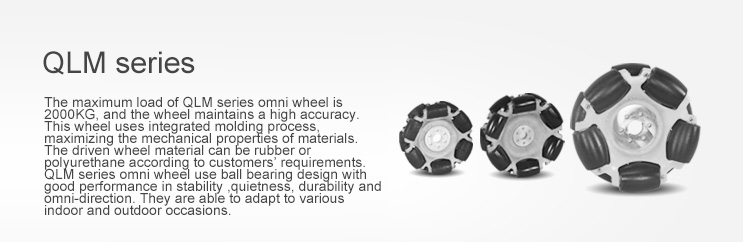

    图片说明
    Product
    QLM-15
    QLM-20
    QLM-24
    QLM-25
    QLM-28
    QLM-31
    QLM-36
    QLM-40
    QLM-40A
    Diameter(mm) 152.4（6"） 203.2（8"） 240 254 280 310 360 406.4（16"） 406.4
    Wide(mm) 56 75 107 133 227 161 257 180 210
    Wheels 12 12 12 8 6 8 6 10 8
    Bearing Type Rolling Bearing
    Wheel Material Rubber/Polyurethane Polyurethane
    Hub Material Aluminum Steel
    Hub Surface Treatment No Treatment High-Temperature Painting
    Mount Flange
    Typical Middle Hole Size(mm) 20 45 55 70
    Weight(kg) 0.94 2.2 12.5 11 28 37 44 45 53
    Load(kg) 50 100 200 450 800 800 1500 1200 1600
  • integrated molding process hub , high intensity ,high stiffness
  • This wheel uses integrated molding process, maximizing the mechanical properties of materials integrated molding process hub , high intensity ,high stiffness, reliable and long lifetime durable .
  • Rolling Bearing
  • Compared to sliding bearings and products without bearings structure, QLM series omni wheel, which adopts rolling bearing design, hasadvantage such as little friction, high precision ,high reliability ,convenient fix, and it can be suitable for the continuous use.
  • payload between 0-2000KG
  • this series can load 2000KG maximum
  • industrial-grade quality
  • design and manufacture in accordance with industry standard
