  • QL-05 Omni Wheel
  • Product Description
  • QL series omni wheel is 90-degree precise light load omni wheel . there are 2 ball bearings in every driven wheel . it is aimed to supply products with high precise and high quality to satisfy customers’ various applications . QL series omni wheel has achieved zero clearance in axial direction of driven wheel with steady improvement, particularly suitable for different small robots.
  • Feature
  • zero clearance in axial direction of driven wheelDouble Multi-subdivision design2 bearings embedded in every driven wheelhigh quality rubberhigh-temperature painting technologysteadly improving Ql series omni wheel
  • Dimension
  • Detailed Images
  • Diameter: 50.8(2")mm Wide: 21.5mm
    Wheels: 12 Bearing: 24
    Bearing Type: Rolling Bearing Wheel Material: Rubber
    Hub Material: Aluminum Hub Surface Treatment: High-Temperature Painting
    Mount: Flange/Set Screws Typical Middle Hole Size: 4/5/6/8mm
    Weight: 70/75g Load: 5Kg
  • Display

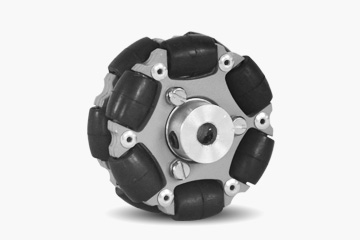

    1. omniwheel轴测图
      Realistic picture
      omniwheel侧视图
      Realistic picture
      omniwheel正面斜俯视图
      Realistic picture
      omniwheel正面斜俯视图
      Realistic picture
  • Document download
  • QL-05ACN.pdf
    QL-05BCN.pdf
