    • QL-08 Omni Wheel
    • Product Description
    • QL series omni wheel is 90-degree precise light load omni wheel . there are 2 ball bearings in every driven wheel . it is aimed to supply products with high precise and high quality to satisfy customers’ various applications . QL series omni wheel has achieved zero clearance in axial direction of driven wheel with steady improvement, particularly suitable for different small robots.
    • Feature
    • zero clearance in axial direction of driven wheelDouble Multi-subdivision design2 bearings embedded in every driven wheelhigh quality rubberhigh-temperature painting technologysteadly improving Ql series omni wheel

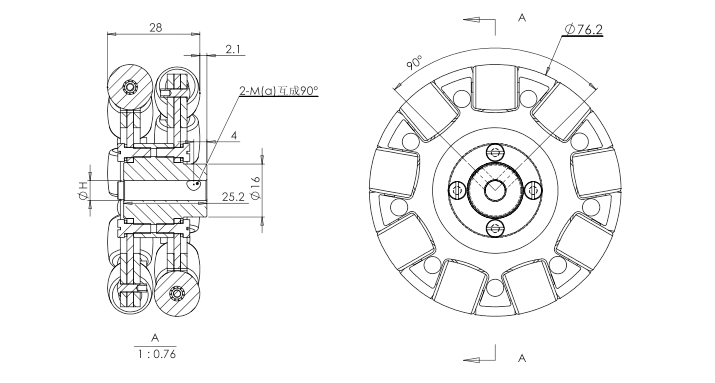

    • Dimension
    • Detailed Images
    • Diameter: 76.2（3"）mm Wide: 28mm
      Wheels: 18 Bearing: 36
      Bearing Type: Rolling Bearing Wheel Material: Rubber
      Hub Material: Aluminum Hub Surface Treatment: High-Temperature Painting
      Mount: Flat key/Set Screws Typical Middle Hole Size: 4/5/6/8mm
      Weight: 140g Load: 15Kg
    • Display
      • omniwheel轴测图
        Realistic picture
        omniwheel侧视图
        Realistic picture
        omniwheel正面斜俯视图
        Realistic picture
        omniwheel正面斜俯视图
        Realistic picture
    • Document download
    • QL-08CN.pdf
