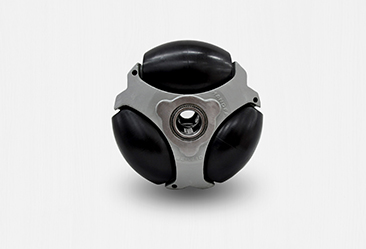

    • QLM-28 Omni Wheel
    • Product Description
    • The maximum load of QLM series omni wheel is 2000KG, and the wheel maintains a high accuracy. This wheel uses integrated molding process, maximizing the mechanical properties of materials. The driven wheel material can be rubber or polyurethane according to customers’ requirements. QLM series omni wheel use ball bearing design with good performance in stability ,quietness, durability and omni-direction. They are able to adapt to various indoor and outdoor occasions.
    • Feature
    • integrated molding process hub , high intensity ,high stiffnessRolling Bearingpayload between 0-2000KGindustrial-grade quality

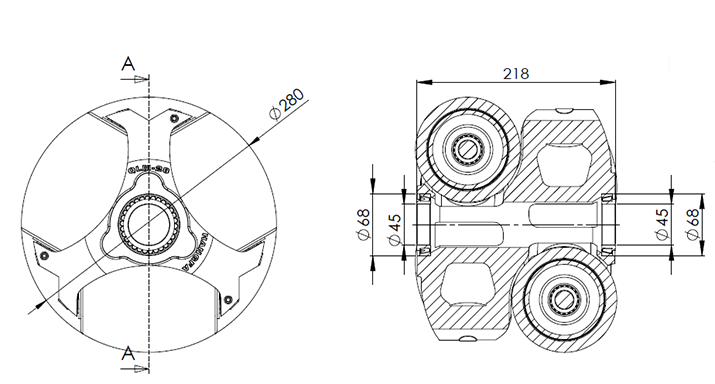

    • Dimension
    • Detailed Images
    • Diameter: 280mm Wide: 218mm
      Wheels: 6 Weight: 28Kg
      Bearing Type: Rolling Bearing Flange Diameter: 86mm
      Hub Material: Carbon Steel Hub Surface Treatment: High Temperature Painting
      Middle Hole Size: 45mm Load: 800Kg
    • Display

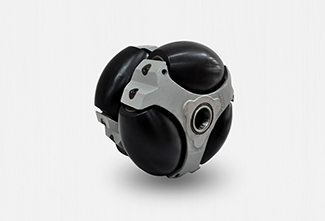

      • omniwheel轴测图

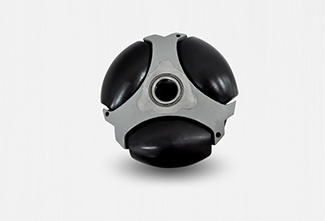

        Realistic picture

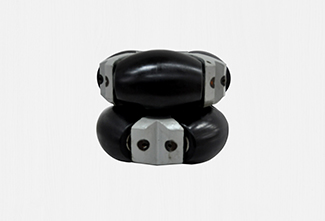

        omniwheel侧视图
        Realistic picture
        omniwheel侧视图
        Realistic picture
        omniwheel侧视图
        Realistic picture
    • Document download
    • QLM-28CN.pdf
