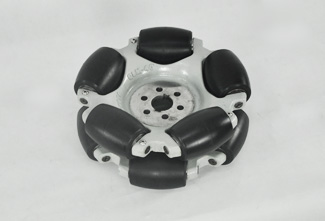

    • QLM-40 Omni Wheel
    • 全向轮
    • Product Description
    • The maximum load of QLM series omni wheel is 2000KG, and the wheel maintains a high accuracy. This wheel uses integrated molding process, maximizing the mechanical properties of materials. The driven wheel material can be rubber or polyurethane according to customers’ requirements. QLM series omni wheel use ball bearing design with good performance in stability ,quietness, durability and omni-direction. They are able to adapt to various indoor and outdoor occasions.
    • Feature
    • integrated molding process hub , high intensity ,high stiffnessRolling Bearingpayload between 0-2000KGindustrial-grade quality
    • Dimension
    • 全向轮
    • Detailed Images
    • Diameter: 406.4（16"）mm Wide: 180mm
      Wheels: 10 Bearing: 20
      Bearing Type: heavy duty Rolling Bearing Wheel Material: Polyurethane
      Hub Material: steel Hub Surface Treatment: High-Temperature Painting
      Mount: Flange Typical Middle Hole Size: 70mm
      Weight: 45Kg Load: 1200Kg
    • Display
      • omniwheel轴测图
        Realistic picture
        omniwheel侧视图
        Realistic picture
        omniwheel正面斜俯视图
        Realistic picture
        omniwheel背面斜俯视图
        Realistic picture
    • Document download
    • QLM-40CN.pdf
