    • CMA-40 Omni Wheel
    • Product Description
    • CMA series omni wheel provide 4500KG payload maximum ,while maintaining high accuracy. This wheel uses integrated molding process, maximizing the mechanical properties of materials. All the CMA series omni wheels use rolling bearings, polyurethane materials on the driven wheel surfacewith good performance in stability , quietness, durability and omni-direction. They are able to adapt to various indoor and outdoor occasions.
    • Feature
    • integrated molding process hub , high intensity ,high stiffnessRolling Bearingpayload between 0-4500KGindustrial-grade quality

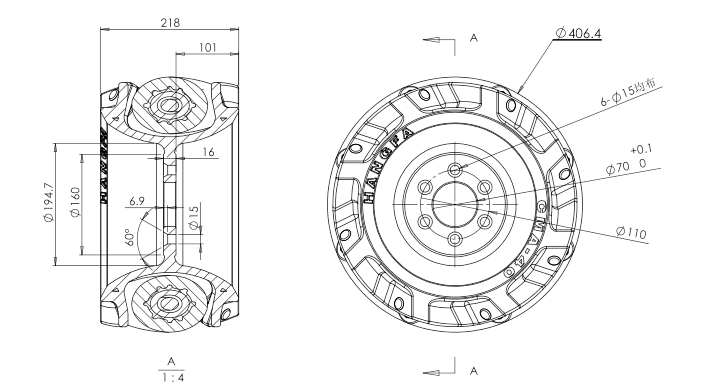

    • Dimension
    • Detailed Images
    • Diameter: 406.4mm Wide: 219mm
      Wheels: 8 Bearing Type: heavy duty Rolling Bearing
      Wheel Material: Polyurethane Hub Material: steel
      Hub Surface Treatment: High-Temperature Painting Mount: Flange
      Flange Plate Thinckness: 16mm Flange Plate Diameter: 160mm
      Flange Cavity Inner diameter: 177mm Typical Middle Hole Size: 70mm
      Weight: 53Kg Load: 1600Kg
    • Display

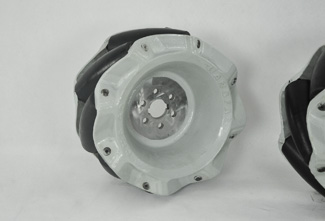

      • omniwheel轴测图
        Realistic picture
        omniwheel侧视图
        Realistic picture
        omniwheel正面斜俯视图
        Realistic picture
        omniwheel背面斜俯视图
        Realistic picture
    • Document download
    • CMA40-EN.pdf
