    • CMA-58 Omni Wheel
    • Product Description
    • CMA series omni wheel provide 4500KG payload maximum ,while maintaining high accuracy. This wheel uses integrated molding process, maximizing the mechanical properties of materials. All the CMA series omni wheels use rolling bearings, polyurethane materials on the driven wheel surfacewith good performance in stability , quietness, durability and omni-direction. They are able to adapt to various indoor and outdoor occasions.
    • Feature
    • integrated molding process hub , high intensity ,high stiffnessRolling Bearingpayload between 0-4500KGindustrial-grade quality
    • Dimension
    • Detailed Images
    • Diameter: 584.2mm Wide: 300mm
      Wheels: 8 Bearing Type: Rolling Bearing
      Load: 3100Kg Hub Material: Carbon Steel
      Flange Screw: 15-M14*1.5 Hub Bolt Screw Pitch Circle Diameter: 185mm
      Flange Plate Thinckness: 20mm Flange Plate Diameter: 230mm
      Flange Cavity Inner diameter: 269mm Typical Middle Hole Size: 140mm
      weight: 153Kg
    • Display

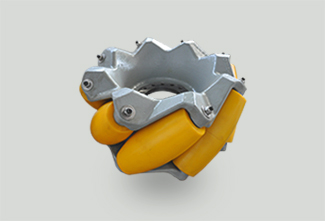

      • omniwheel轴测图
        Realistic picture
        omniwheel侧视图
        Realistic picture
        omniwheel正面斜俯视图
        Realistic picture
        omniwheel背面斜俯视图
        Realistic picture
    • Document download
    • CMA58-EN.pdf
