    • CMA-45 Omni Wheel
    • Product Description
    • CMA series omni wheel provide 4500KG payload maximum ,while maintaining high accuracy. This wheel uses integrated molding process, maximizing the mechanical properties of materials. All the CMA series omni wheels use rolling bearings, polyurethane materials on the driven wheel surfacewith good performance in stability , quietness, durability and omni-direction. They are able to adapt to various indoor and outdoor occasions.
    • Feature
    • integrated molding process hub , high intensity ,high stiffnessRolling Bearingpayload between 0-4500KGindustrial-grade quality

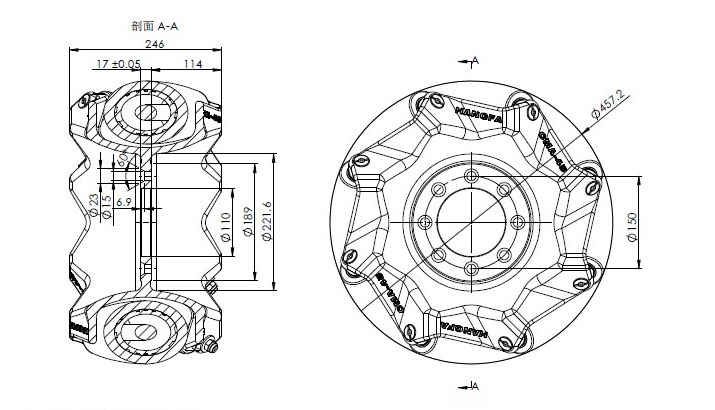

    • Dimension
    • Detailed Images
    • Diameter: 457.2mm Wide: 246mm
      Wheels: 8 Bearing Type: heavy duty Rolling Bearing
      Wheel Material: Polyurethane Hub Material: carbon steel
      Flange Plate Thinckness: 17mm Flange Plate Diameter: 189mm
      Flange Cavity Inner diameter: 221mm Typical Middle Hole Size: 110mm
      Weight: 76Kg Load: 1900Kg
      Hub Surface Treatment: High-Temperature Painting Flange Screw: 8-M14*1.5 Hub Bolt

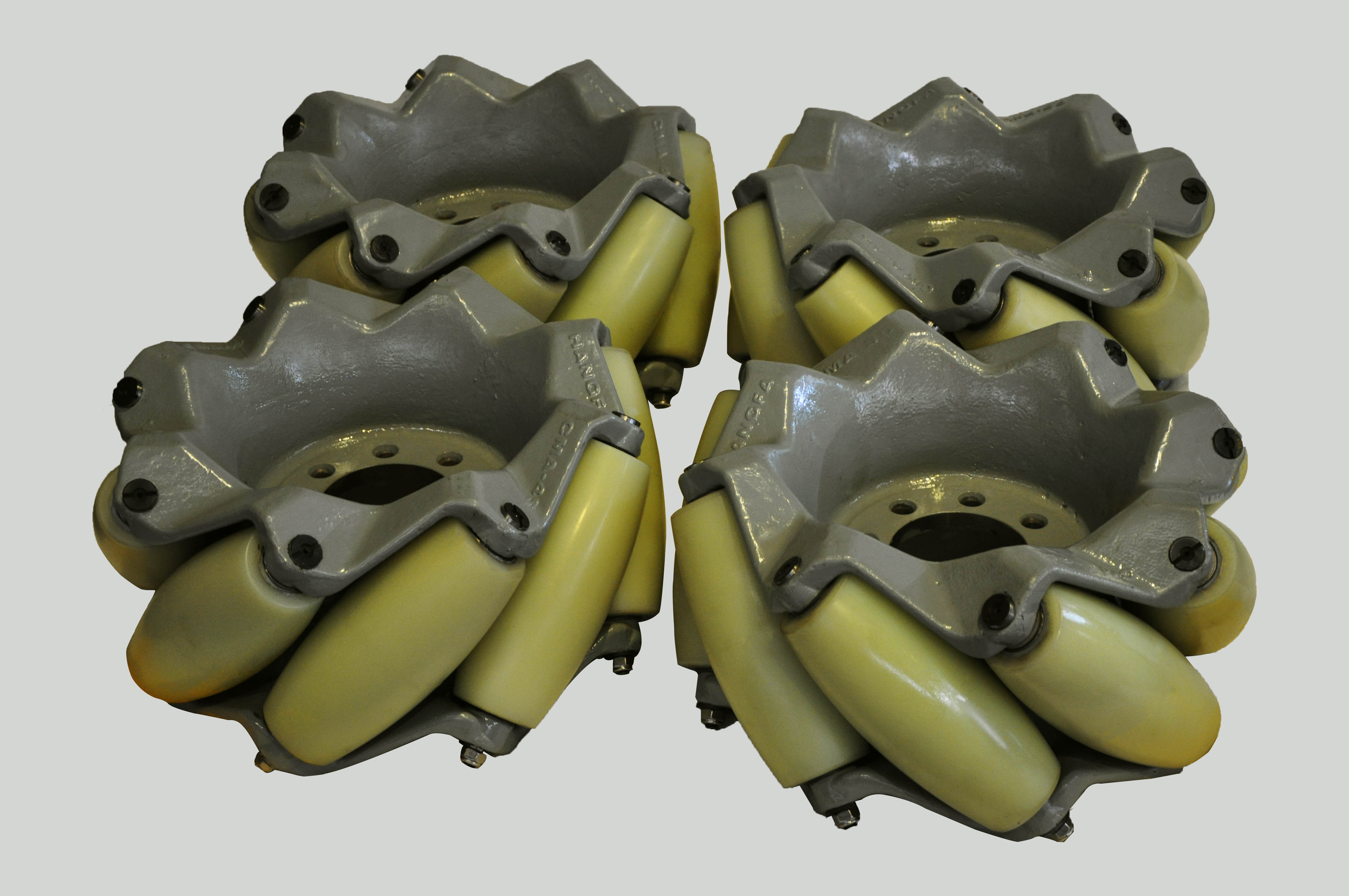

    • Display

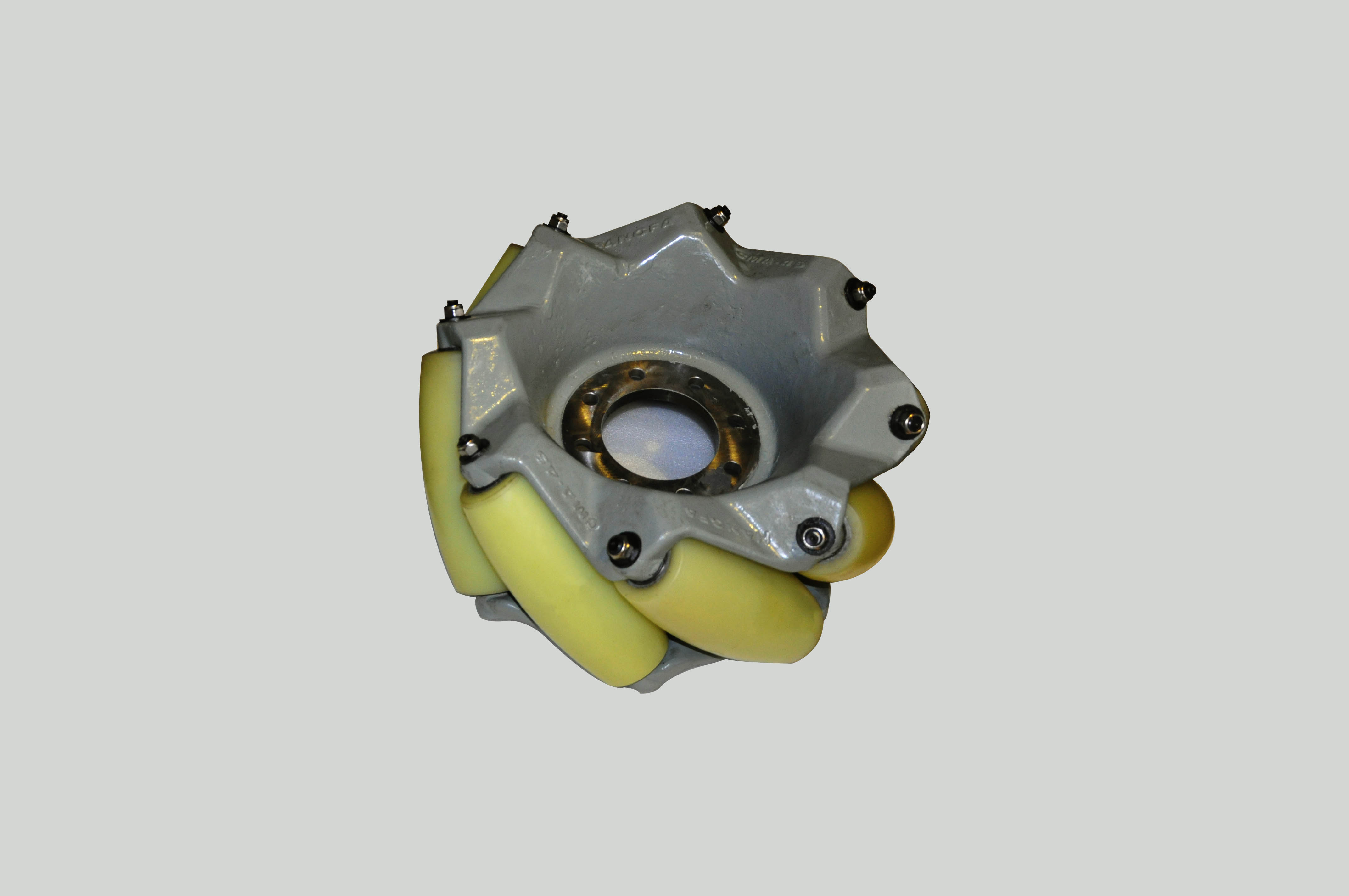

      • omniwheel轴测图
        Realistic picture

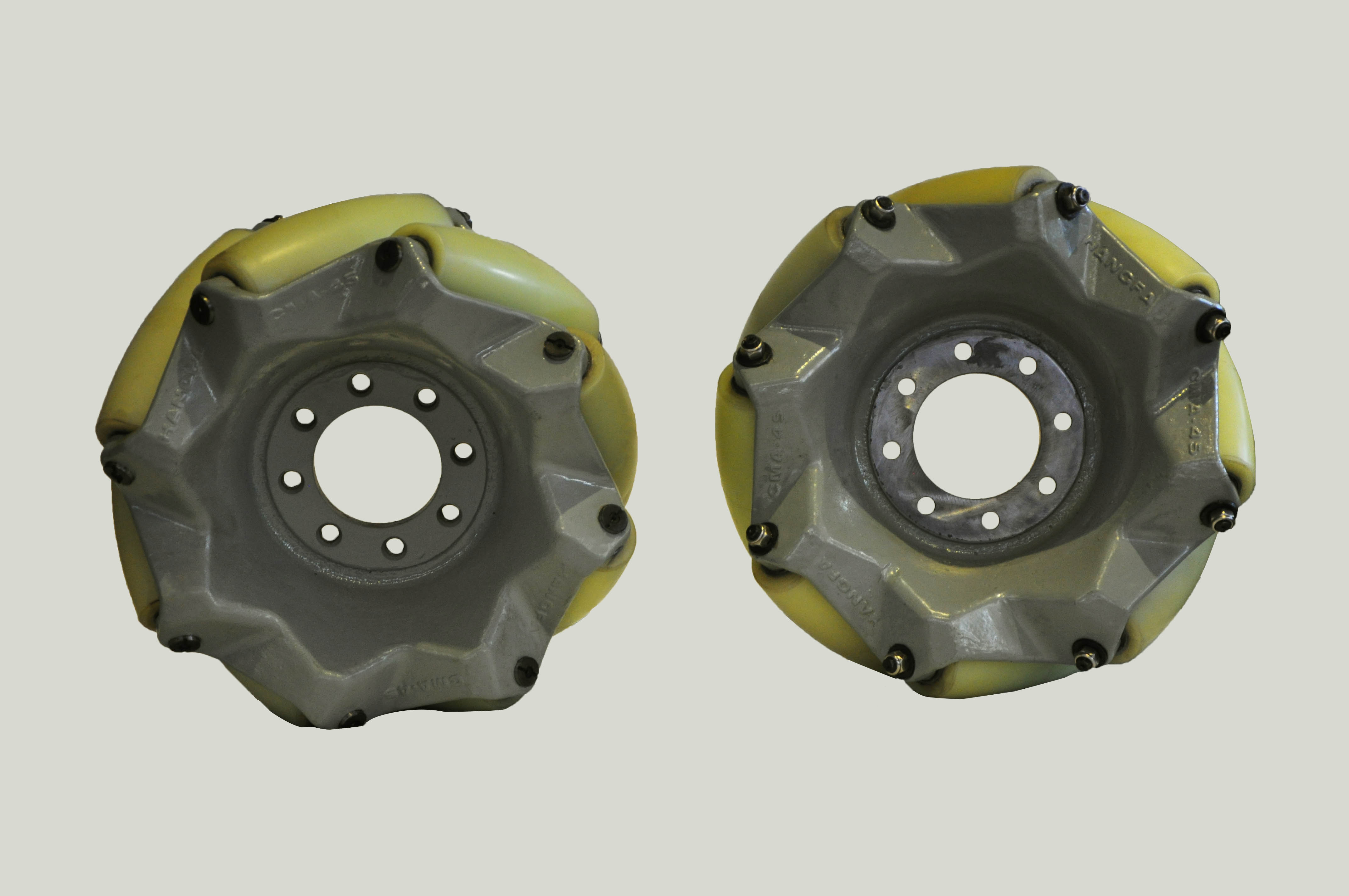

        omniwheel侧视图
        Realistic picture

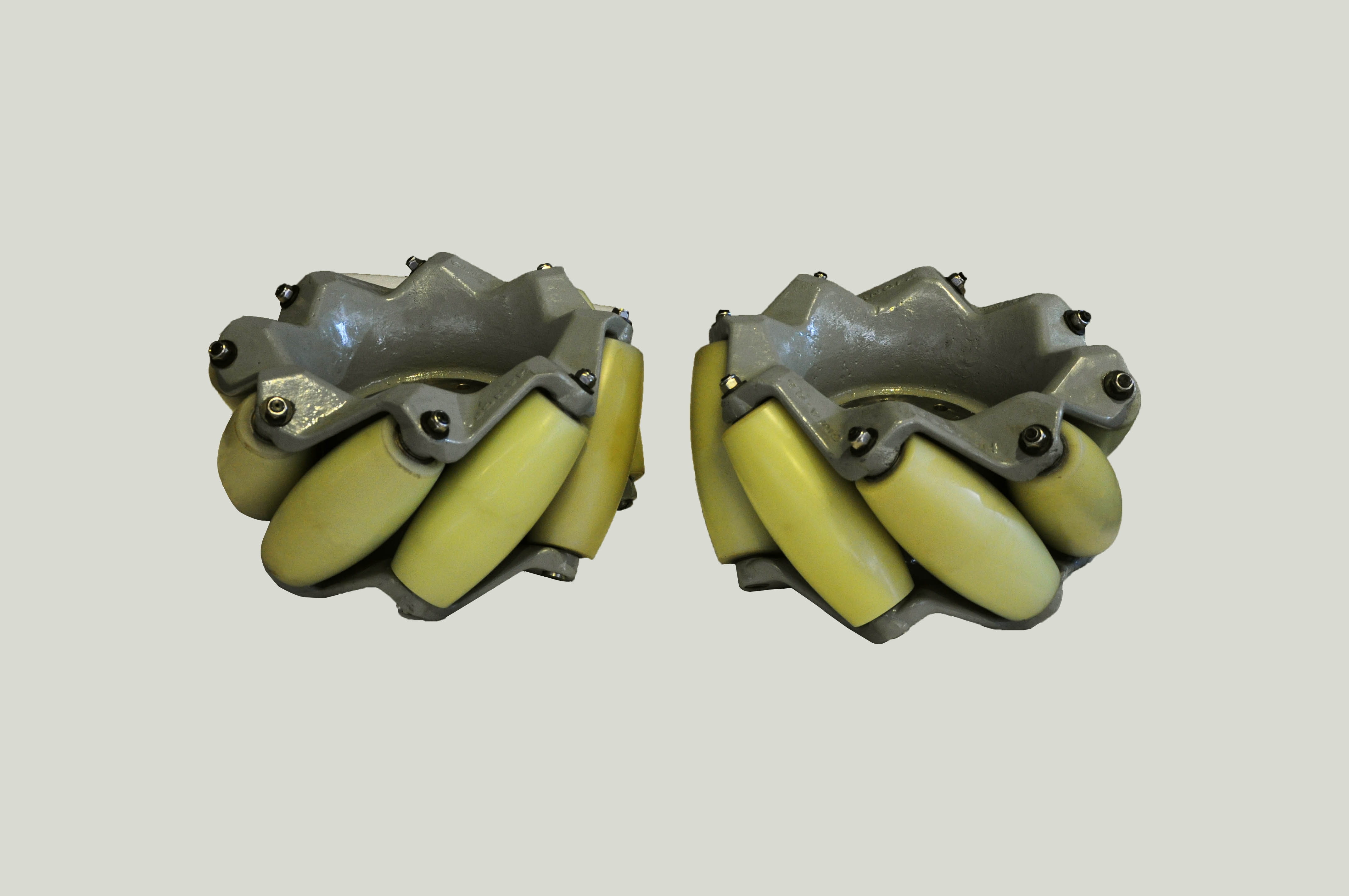

        omniwheel正面斜俯视图
        Realistic picture

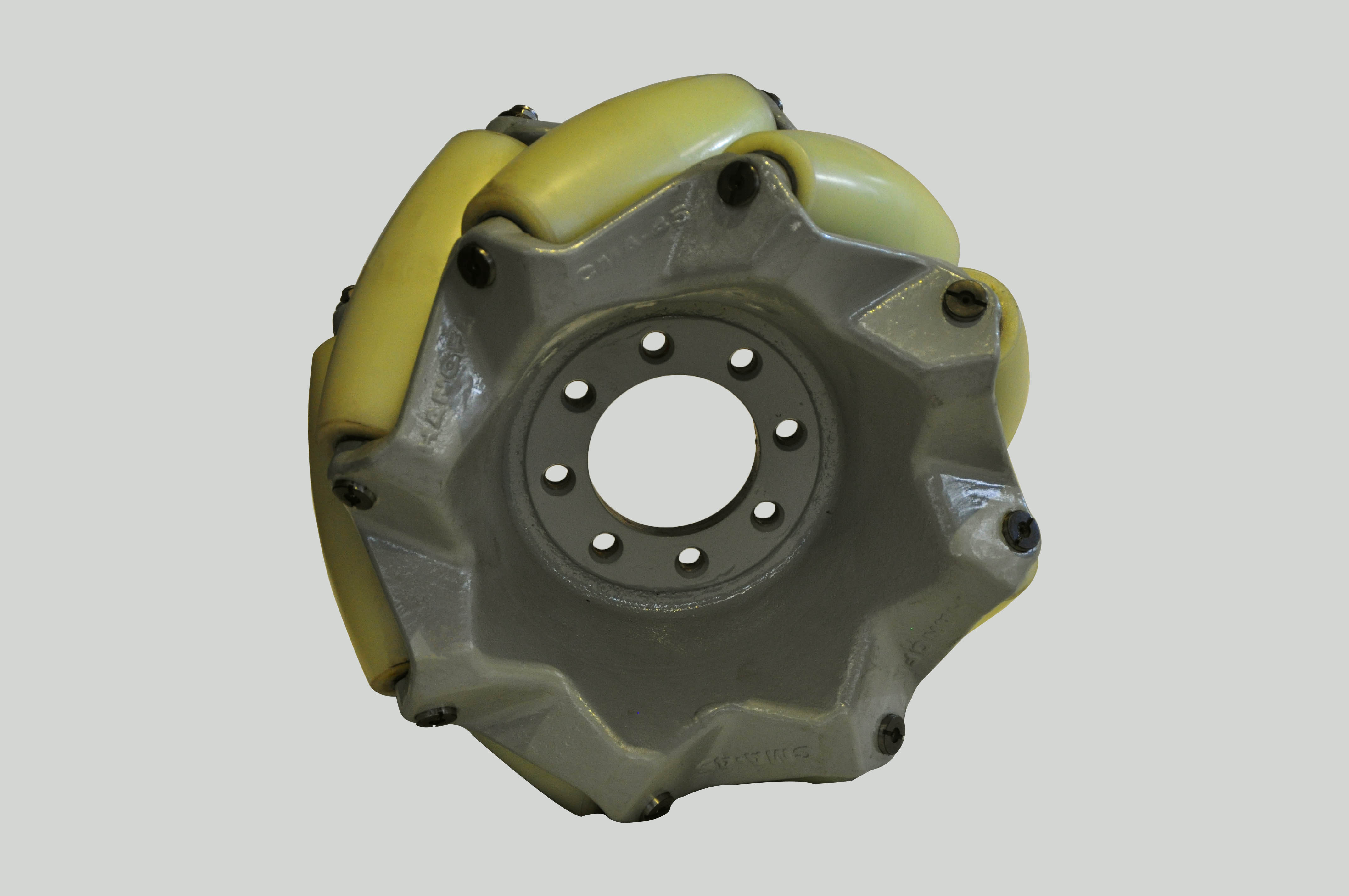

        omniwheel背面斜俯视图
        Realistic picture
    • Document download
    • CMA-45EN.pdf
