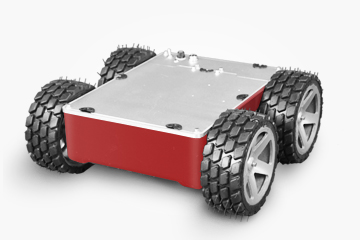

    • Compass C2
    • Product Description
    • The Compass series is a small fundamental robot platform. It aims to provide users with a complete mobile robot system with high reliability and multiple interfaces. Compass C2 is a robot platform equipped with HSL-15 inflatable rubber driving wheels and a powerful drive system, which can adapt to all kinds of working environment and complete all kinds of sports efficiently. The chassis of this platform adopts overall aluminum casting & molding process. Compass C2 uses four high-power coreless motors as the driver, equipped with multi-axis servo driver, supporting both CAN bus and RS232 interface. The development kit provides customers with a complete equipment communication protocol, and also provides examples and demo application source code based on STM32F407, which allows users quickly know how to operate Compass C2
    • Feature
    • four-wheel independent drive gear train with bearing inflatable rubber wheel coreless DC servo motor servo driver demo application source code based on STM32F407

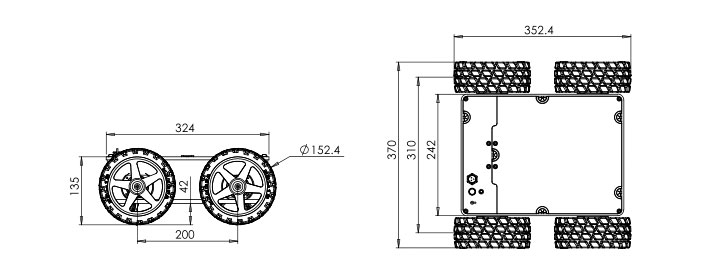

    • dimension

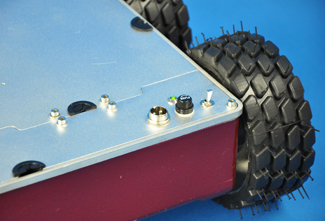

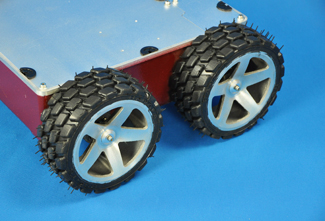

    • Detailed Images
    • body structure: aluminum alloy molding whole shape dimension: 352.4*370*135mm
      driving wheel: HSL-15 inflatable rubber wheel diameter of driving wheel: 152.4mm
      drive mode: four-wheel independent drive suspend kind no suspension
      minimum space between robot to ground: 42mm gross weight: 17kg
      rated load capacity: 30kg motor type: coreless DC servo motor
      rated power of the motor: 30W motor encoder: 500 line/rev, A、 B phase output
      quantity of motors: 4 motor driver: servo driver, supporting both CAN bus and RS232 interface
      maximum translational speed: 1.2m/s maximum rotation speed: 260°/s
      minimum turning radius: 0m adaptive ground: indoor,bituminous ground ,concrete ground with little depression
      typical duration time: >8h(load capacity 10KG,moving speed  1m/s,moving rate70%) standby time: >30h
      support electricity output: 5V@5A / 12V@5A /battery voltage(35.2~46.2V)@>10A The default specification of The power of insurance tube: 5×20/10A
      bettery capacity: 24V/7.8Ah lithium-ion battery battery fast change: support
      battery charger: charger input voltage:AC100V~240V Charging current:5A Interface:direct plug-in
      DEMO development board: RHF407development board（CAN×2，RS232×2，TTL×1，RS485×1，SPI×1，I2C×1，USB×1，ADC×8，DAC×2，PWM×8，LED×2，Button×2，IndependenI/O×24， Reusable I/O×29，TF interface×1，RTC battery back seat，ReusableTFT LCD interface×1）
      accessories: battery charger、ULB-1ultrasonic sensor×5
