  • The Navigator series is the representative of high performance and high reliability products. Adopting industrial product design concept, it is designed to provide users with a complete, user-friendly robot system with high performance, high reliability, multiple interface, strict protection grade, long-term continuous work capacity. The Navigator C2 is the robot platform with two inflatable rubber driving wheels and two inflatable rubber differential wheels, equipped with a powerful drive system, which can adapt to all kinds of working environment and complete all kinds of sports efficiently. The chassis of this platform adopts overall casting molding process of aluminum alloy. Navigator C2 uses two high-power coreless motors as the driver, equipped with independent servo driver and the advanced motion controller, which integrates various motion control function, making both CAN bus and RS232 interface available. The development kit provides customers with a complete equipment communication protocol, and also provides examples and demo application source code based on STM32F407, which allows users quickly know how to operate Navigator C2.
  • Feature
  • 500W super drive poweroverall aluminum casting & molding processhigh ground clearanceinflatable rubber wheelcoreless DC servo motorservo driveradvanced motion controllerdemo application source code based on STM32F407

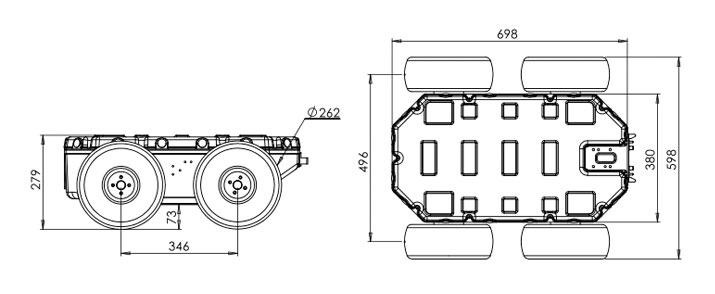

  • dimension

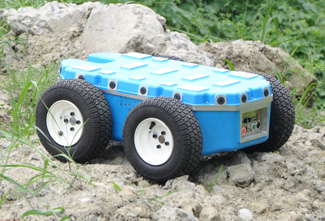

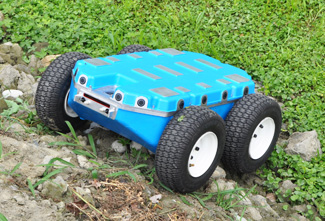

  • Detailed Images
  • body structure: aluminum alloy molding whole shape dimension: 698*598×279mm
    driving wheel: inflatable rubber wheel diameter of driving wheel: 262mm
    drive mode: four wheel driving with two motors suspend kind no suspension
    minimum space between robot to ground: 73mm gross weight: 46kg
    rated load capacity: 80kg motor type: coreless DC servo motor
    rated power of the motor: 240W motor encoder: 500 line/rev, A、 B phase output
    quantity of motors: 2 motor driver: servo driver, supporting both CAN bus and RS232 interface
    maximum translational speed: 1.35m/s maximum rotation speed: 160°/s
    minimum turning radius: 0m adaptive ground: indoor,bituminous ground ,concrete ground with little depression
    typical duration time: >12h(load capacity 10KG,moving speed  1m/s,moving rate70%) standby time: >30h
    support electricity output: 5V@5A / 12V@5A /battery voltage(35.2~46.2V)@>10A The default specification of The power of insurance tube: 5×20/20A
    bettery capacity: 40V/18.2Ah lithium-ion battery battery fast change: support
    battery charger: charger input voltage:AC100V~240V Charging current:5A Interface:direct plug-in
    DEMO development board: RHF407development board(CAN×2,RS232×2,TTL×1,RS485×1,SPI×1,I2C×1,USB×1,ADC×8,DAC×2,PWM×8,LED×2,Button×2,IndependenI/O×24, Reusable I/O×29,TF interface×1,RTC battery back seat,ReusableTFT LCD interface×1)
    accessories: battery charger
