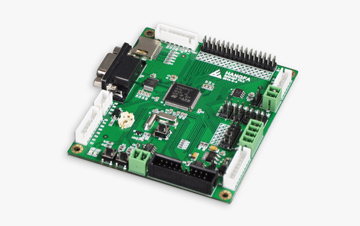

    • RHF407 Development Board
    • Product Description
    • RHF407 Development Board equipped with powerful Cortex M4STM32F407 the main chip, specifically robots and industrial field application accommodates multi-channel CAN bus RS485, RS232, PWM Interface, and provides sample code that allows users to achieve a variety of application development.
    • Feature
    • STM32F407VET6/LQFP-100Main chipCommunication Interface is rich in resourcesImmersion gold process for circuit board
    • dimension
    • Detailed Images
    • dimensions： 100×86
      control chip： STM32F407VET6/LQFP-100
      Onboard resources： CAN×2，RS232×2，TTL×1，RS485×1，SPI×1，I2C×1，USB×1，ADC×8，DAC×2，PWM×8，LED×2，Press×2，IndependentI/O×24，ReusableI/O×29，MicroSD（TF）Card interface×1，RTCBackup battery，ReusableTFT LCDInterface×1
      Input voltage： DC5V
      Typical standby current： 50mA
      Main parts： Control Board×1、CD×1
